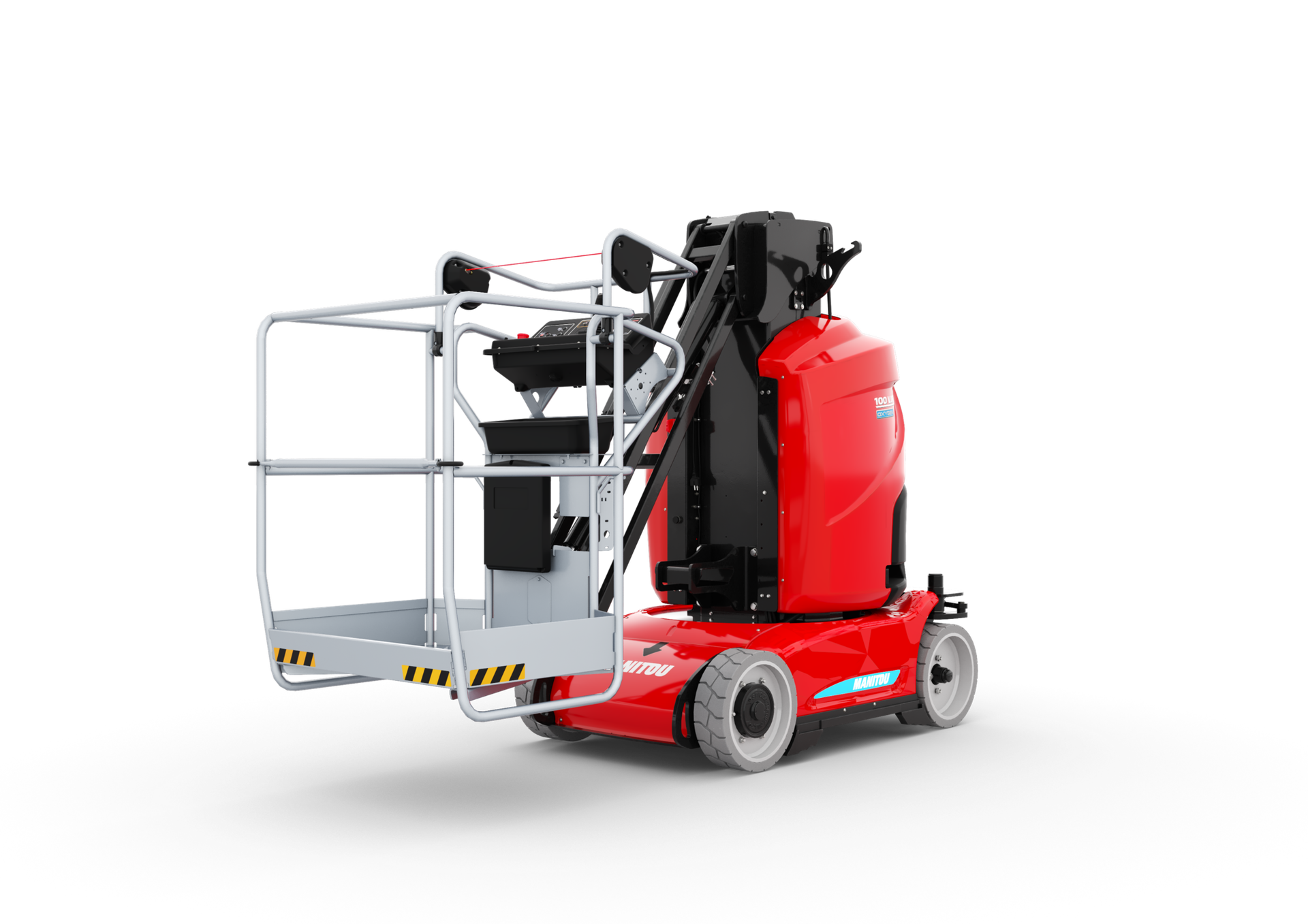

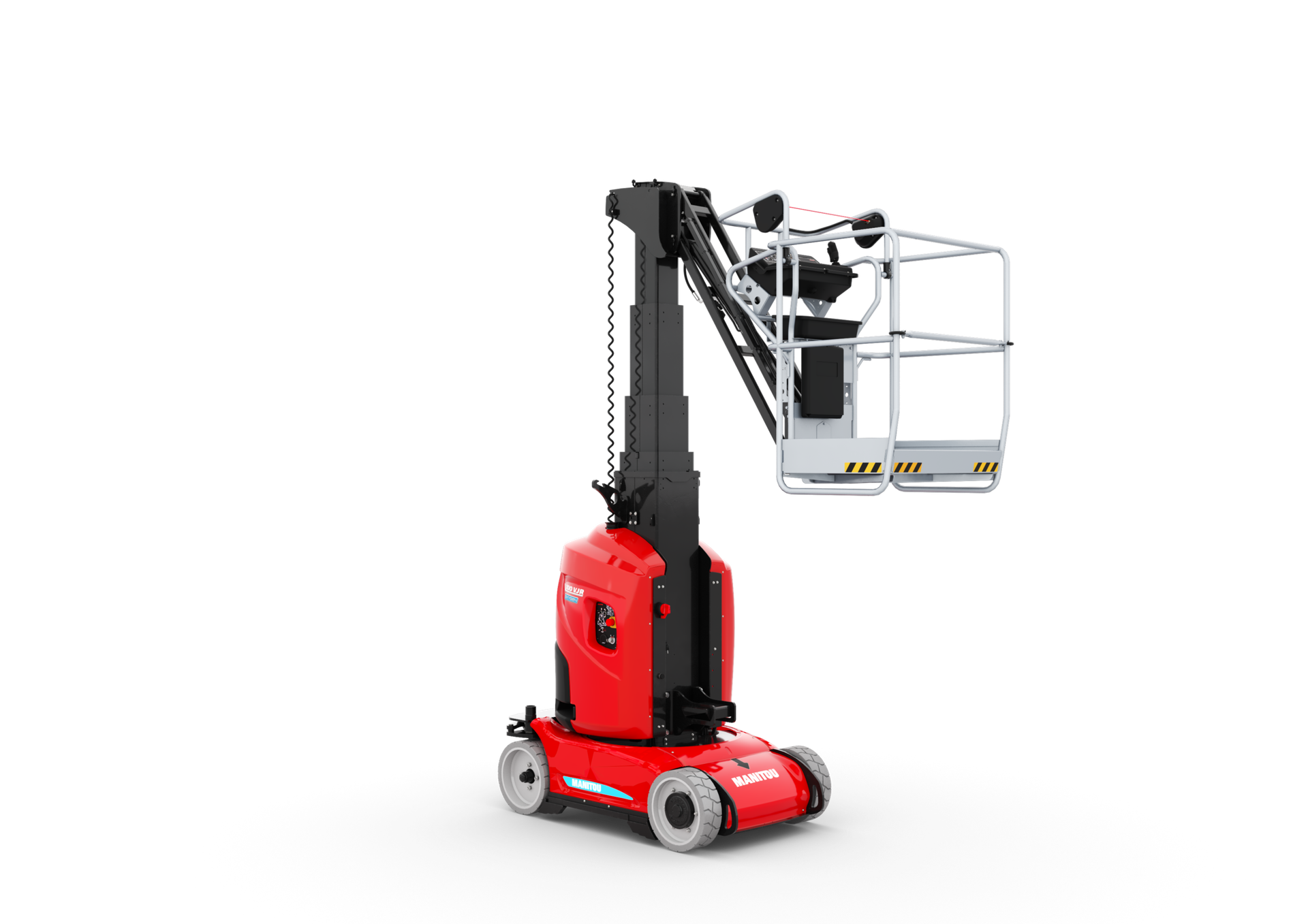

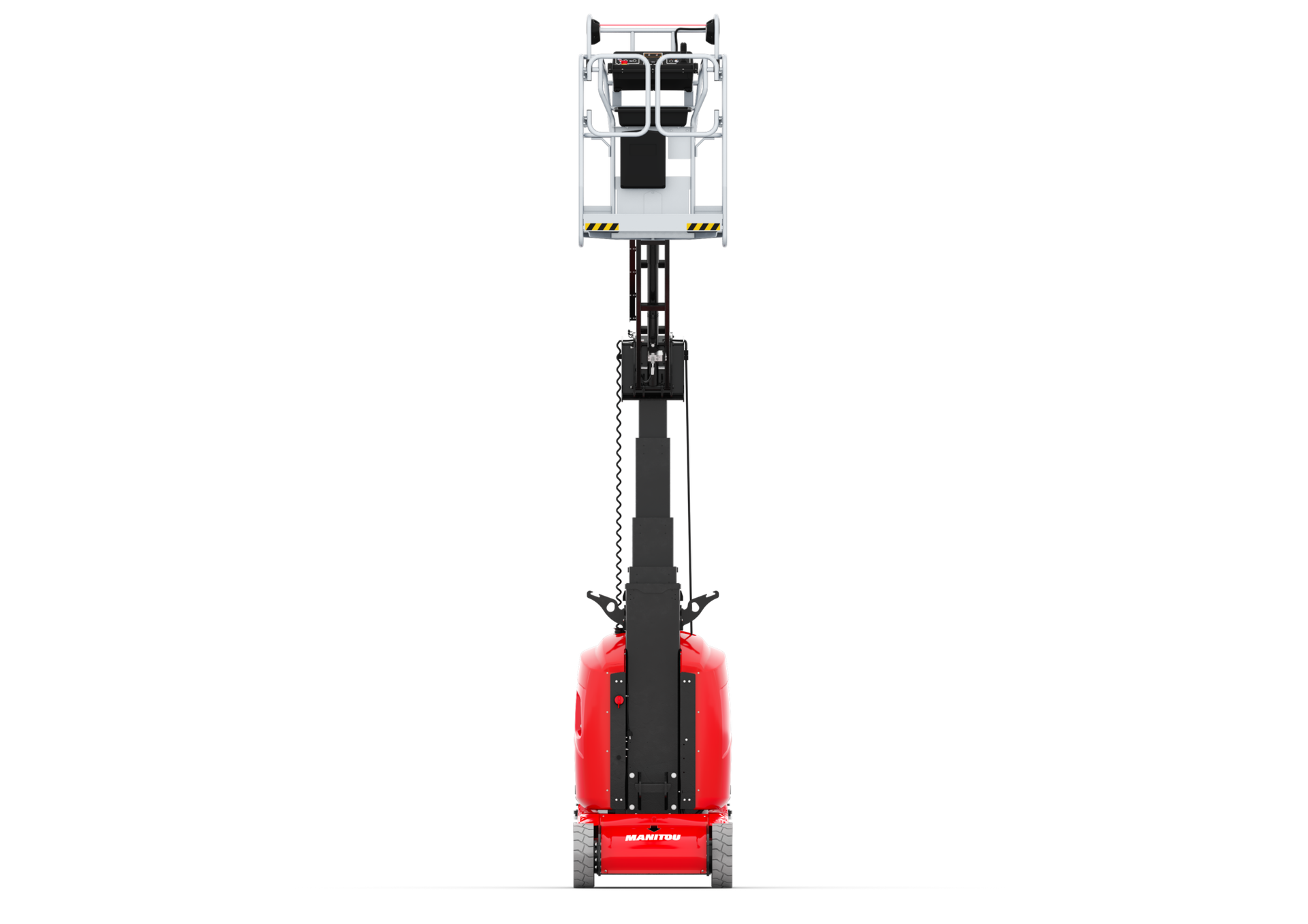

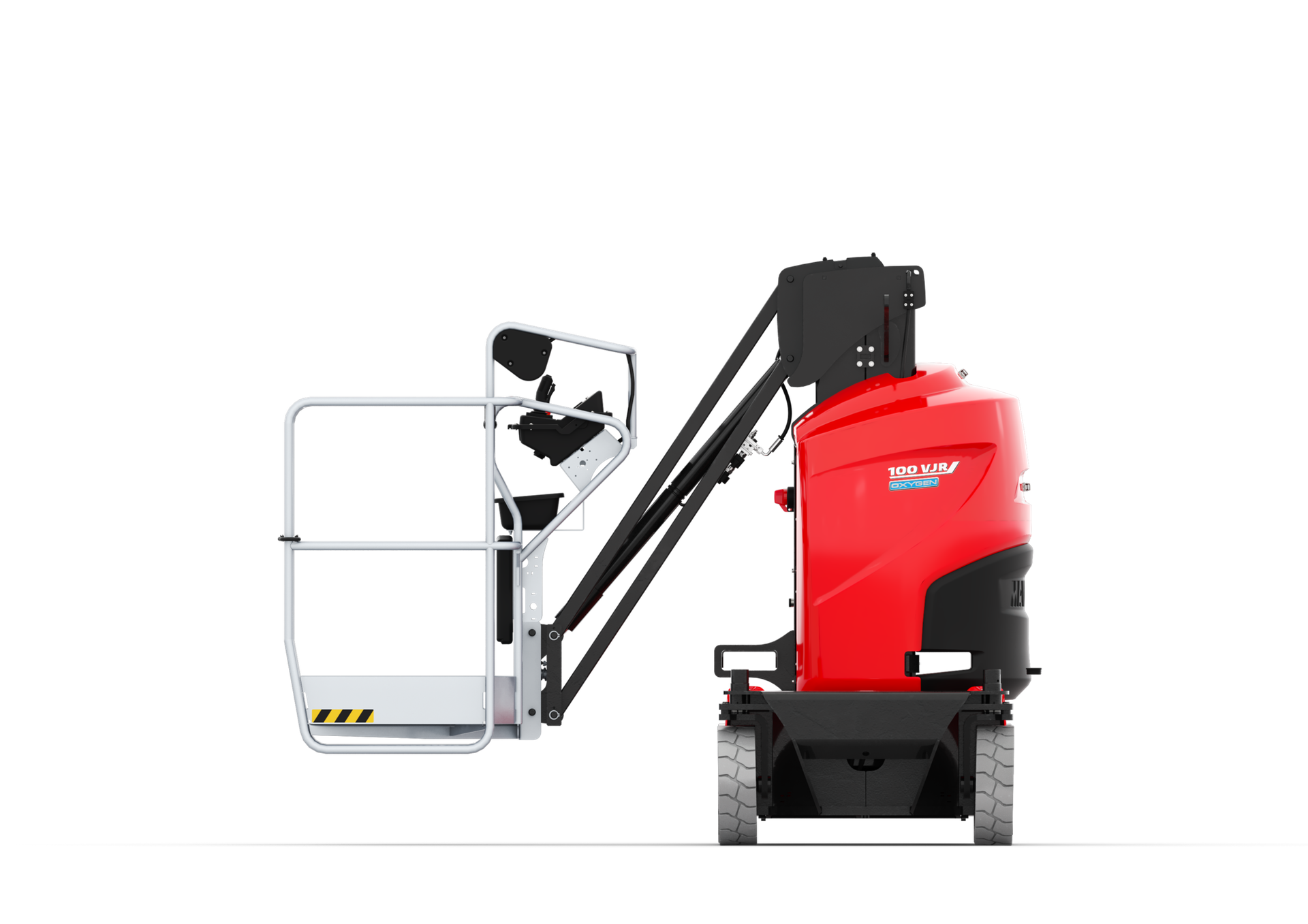

Manitou 100 VJR
The Manitou 100 VJR is an electric vertical boom lift (mobile elevating work platform) with 9.85 metres working height. With a width of 99 cm and lifting capacity of 200 kg, it is narrow and highly manoeuvrable, built for indoor work in tight spaces and warehouses.
- Working height
- 9,85 m
- Lifting capasity
- 200 kg
- Lifting height
- 3,1 m
- Energy type
- EL
Description
The Manitou 100 VJR is an electric mobile elevating work platform from Manitou, of the vertical mast lift type with a jib.
Manitou 100 VJR specs and working height:
Working height is 9.85 metres and outreach is 3.10 metres. Lifting capacity is 200 kg. The machine is 99 cm wide and the turret rotates 350 degrees. For full dimensions and technical specifications, see the product page for the 100 VJR.
The Manitou 100 VJR is the larger of the two VJR models in Manitou's range of mobile elevating work platforms. V stands for vertical mast, J for jib and R for rotation. The number 100 refers to the working height of approximately 10 metres. Where the 80 VJR reaches 7.65 metres, the 100 VJR extends to 9.85 metres, and the jib provides an outreach of 3.10 metres to the side.
The non-marking tyres protect floor coverings, the turret rotates 350 degrees, and the battery lasts a full working day.
Typical applications are maintenance of technical installations, lighting and ventilation systems, work in shelving systems and high-bay warehouses, and indoor facade and ceiling finishing work in large buildings where the jib provides the necessary flexibility to reach around edges and over obstacles.
If you need a smaller machine, the Manitou 80 VJR is available with 7.65 metres of working height. If you need to reach further out and around obstacles, an articulating boom lift such as the Manitou 150 AETJ-C is an alternative.
Operating a mobile elevating work platform of this type requires a valid certificate, which can be obtained through a machine operator course with us.
