Manitou 200 ATJ e

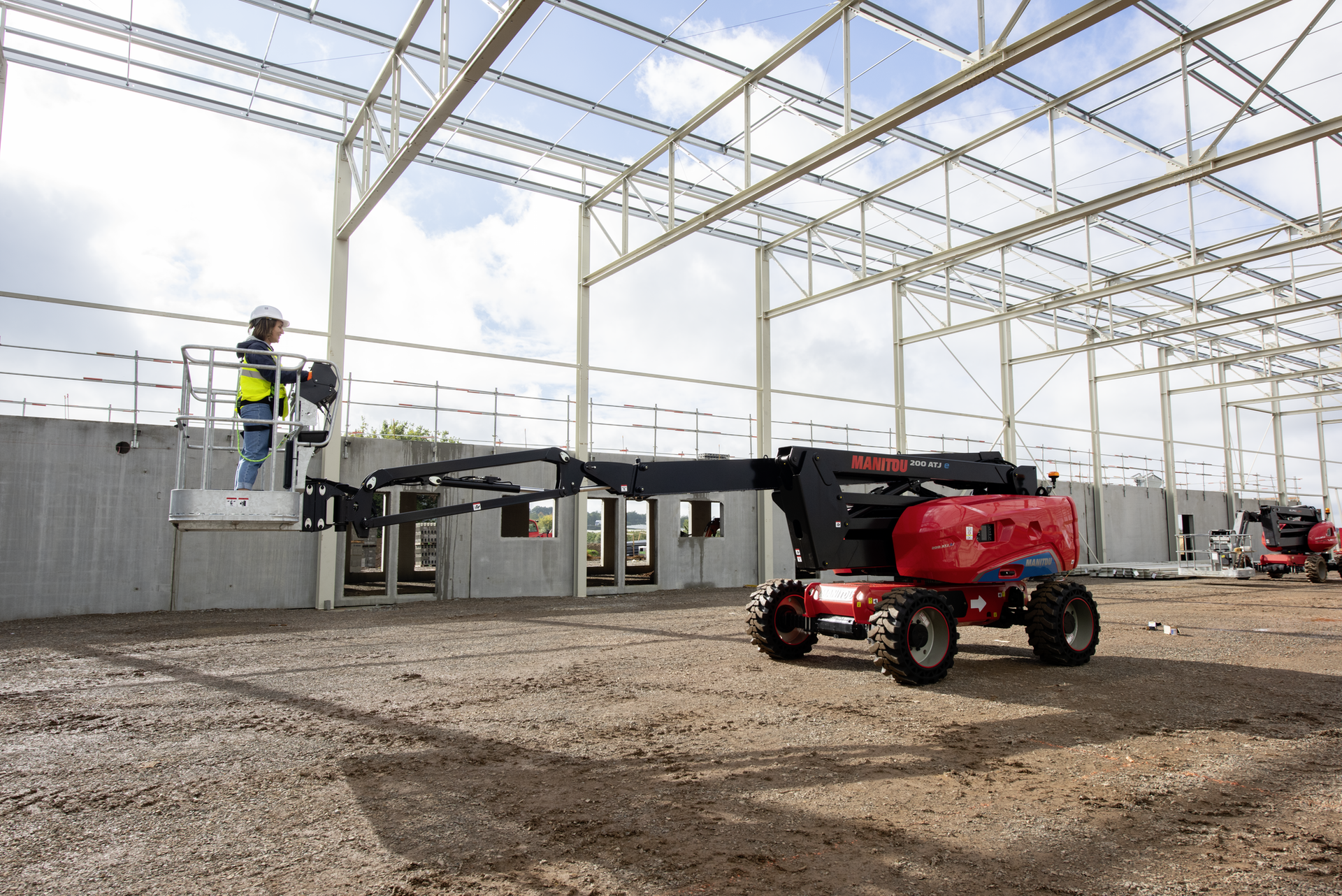

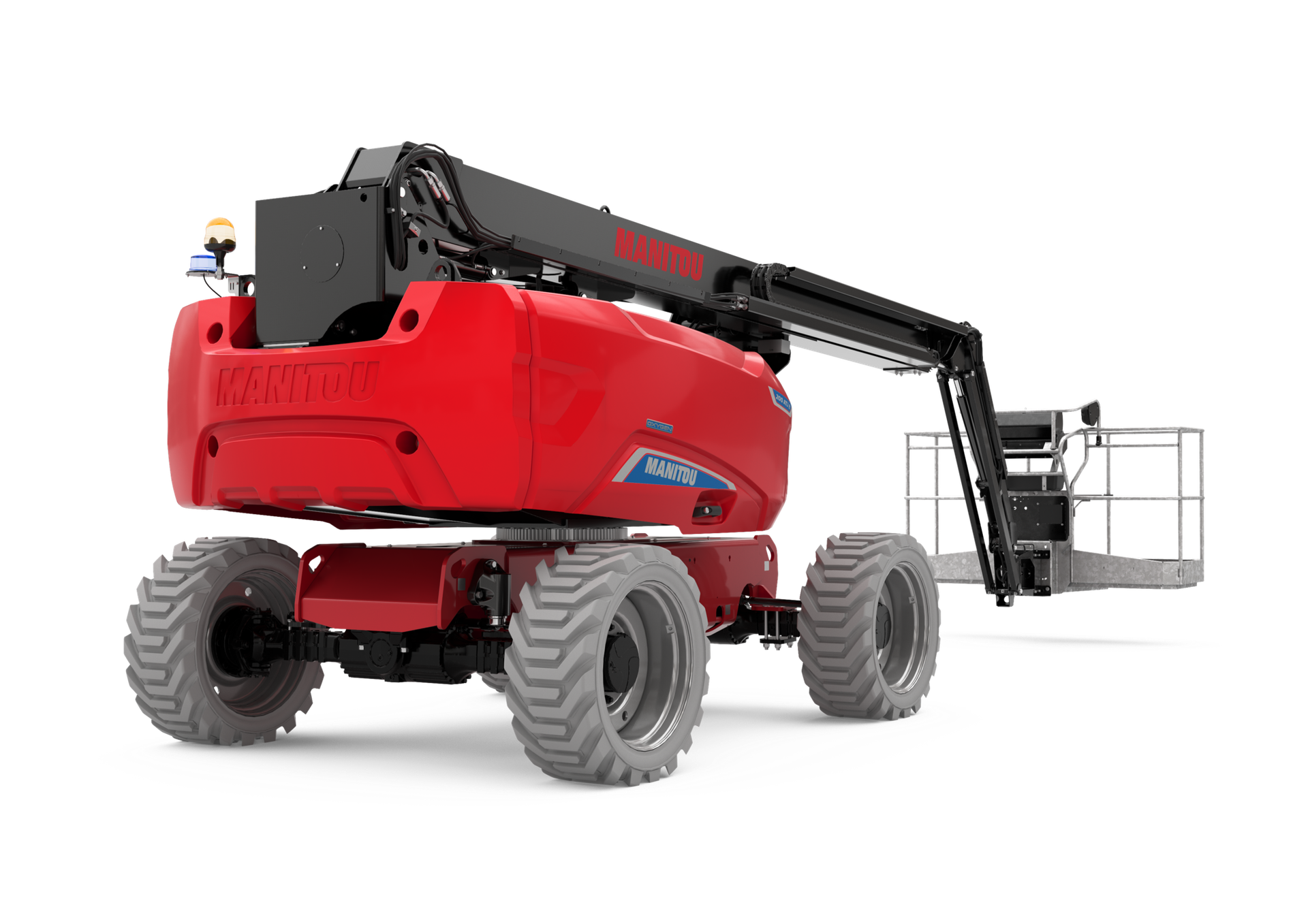

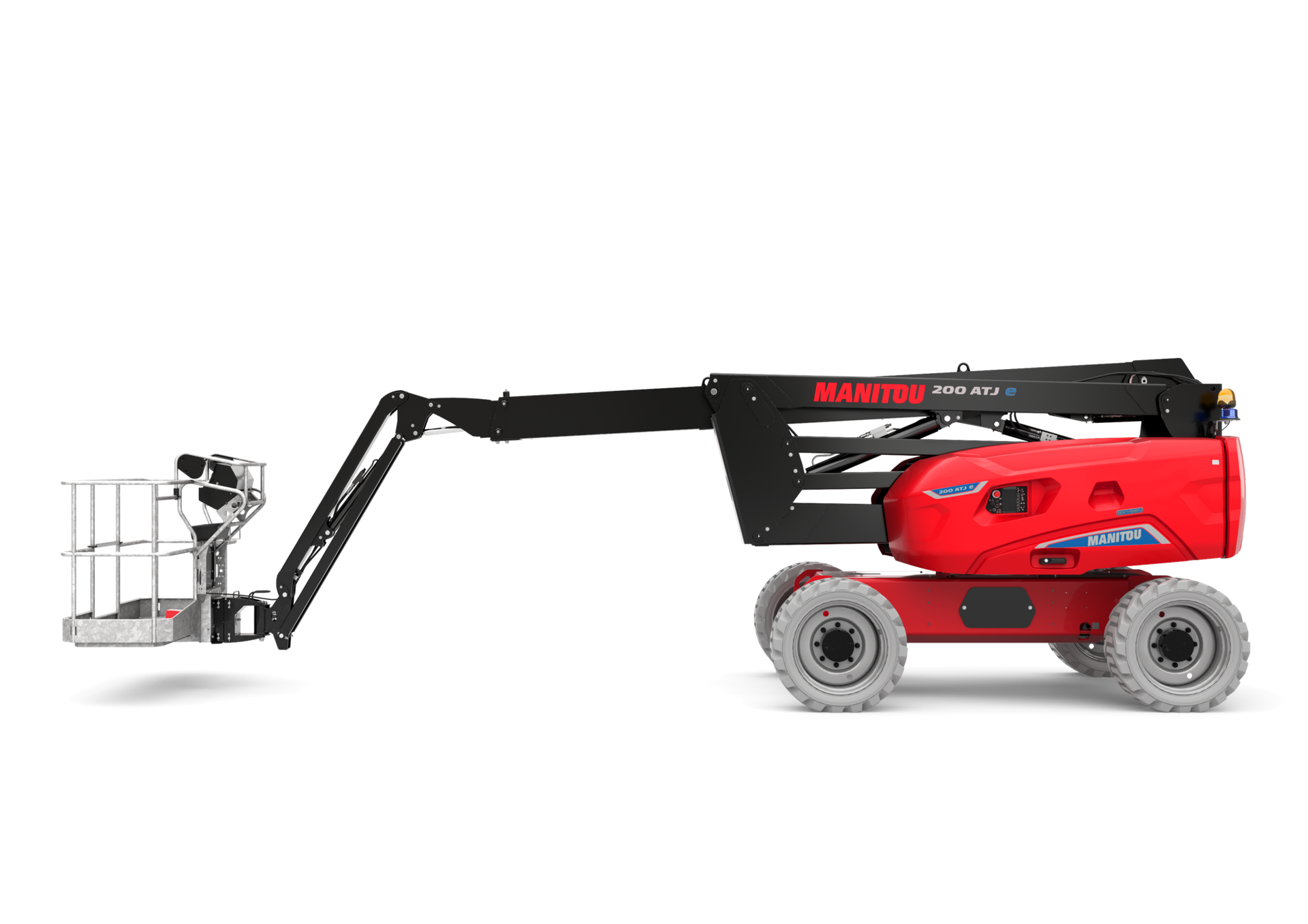

The Manitou 200 ATJ e is an electric articulating boom lift (mobile elevating work platform) with 20 metres working height. With lifting capacity of 250 kg and outreach of 11.57 metres, it is the largest electric boom lift in the ATJ series, suited for both indoor and outdoor use.
- Working height
- 20 m
- Lifting capasity
- 250 kg
- Energy type
- EL
Description
Some jobsites cannot afford diesel exhaust. Noise, emissions and ventilation requirements place limits on construction projects, industrial facilities and locations where people work close to the machine. The Manitou 200 ATJ e 4WS is the answer from Manitou when you need 20 metres of working height and full all-terrain capability without those compromises.
Manitou 200 ATJ e specs and working height:
Working height is 20 metres and outreach is 11.57 metres. Lifting capacity is 250 kg. For full dimensions and technical specifications, see the product page for the 200 ATJ e 4WS.
The Manitou 200 ATJ e is the largest electric boom lift in Manitou's range of mobile elevating work platforms and a mobile elevating work platform that, as an articulating boom lift, reaches around obstacles and into areas that are difficult to access without moving the machine. With quiet, emission-free operation it can work where diesel machines are not permitted.

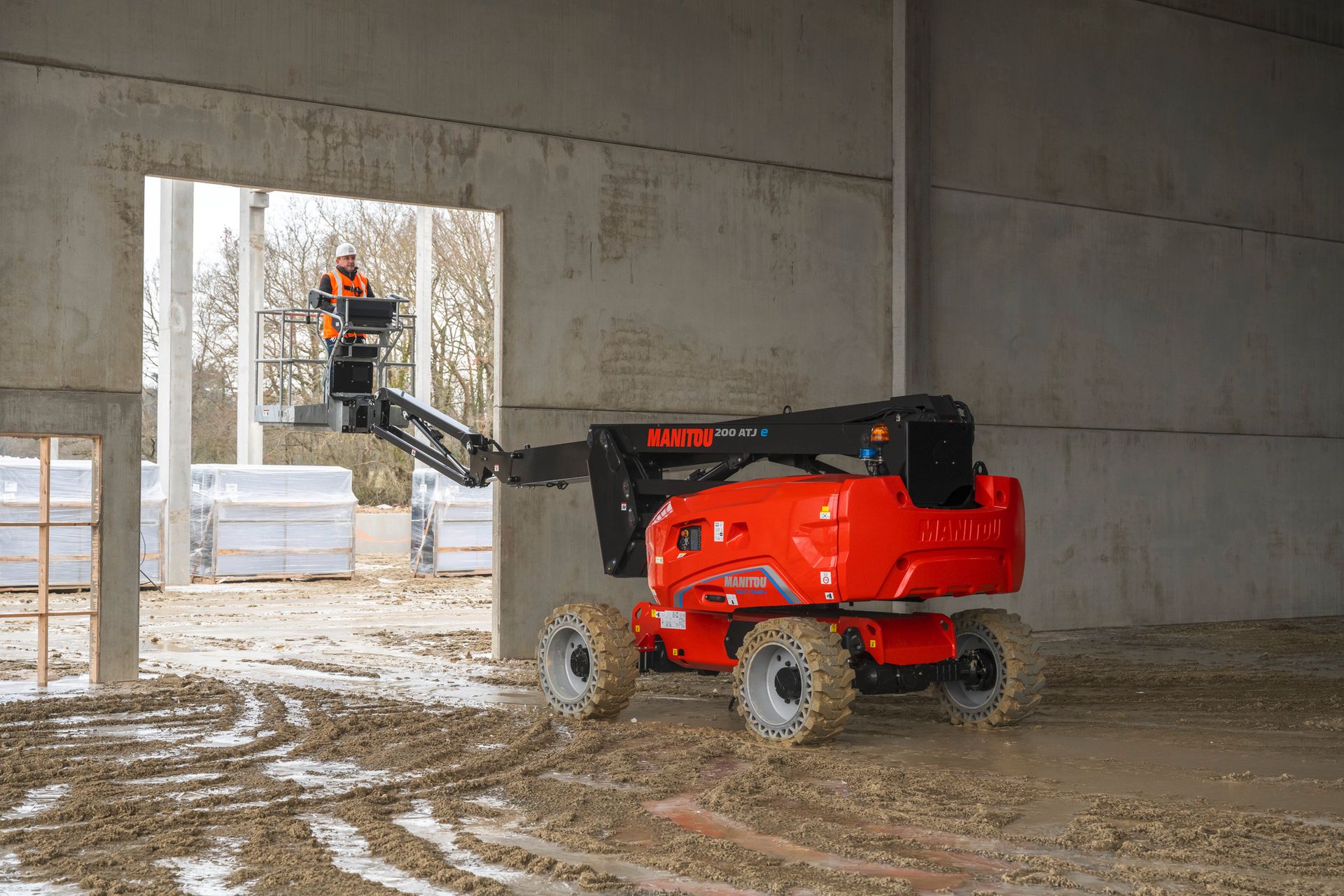

Four-wheel drive, four-wheel steering and an active oscillating axle make it equally at home on muddy construction sites as on polished warehouse floors. The non-marking tyres protect surfaces indoors.
In addition to the standard model, the 200 ATJ e 4WS CR is available with continuous turret rotation, the choice where the machine cannot be moved and the operator needs unlimited swing freedom.
If you need diesel drive, the Manitou 200 ATJ ST5 is available with the same working height. If you need a smaller machine, the Manitou 180 ATJ e is available with 18 metres of working height and electric drive.
All models are equipped with Manitou's Secondary Protection System (SPS), a safety cable in front of the control panel that stops the machine immediately upon unintended contact.
Operating a mobile elevating work platform of this type requires a valid certificate, which can be obtained through a machine operator course with us.
