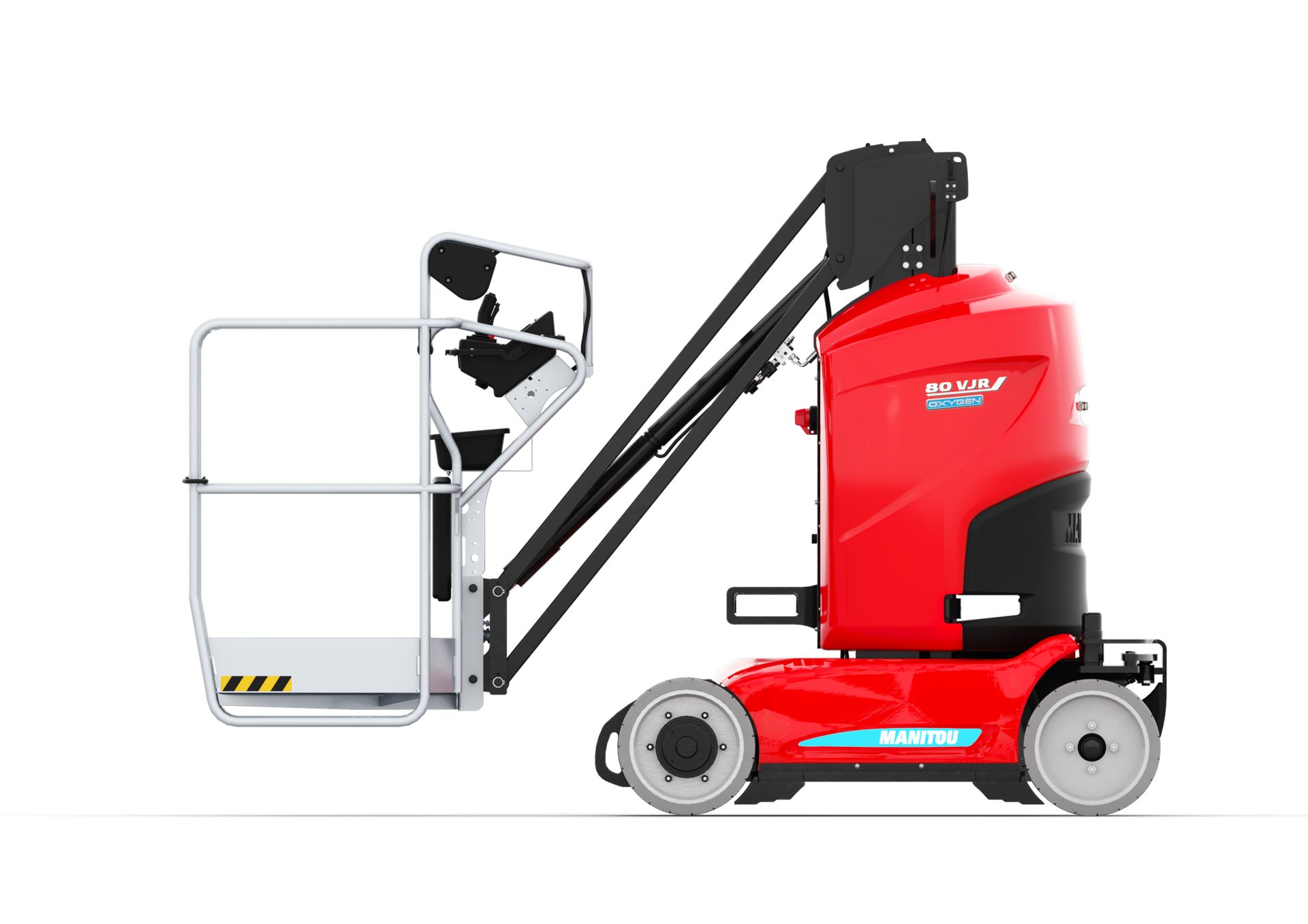

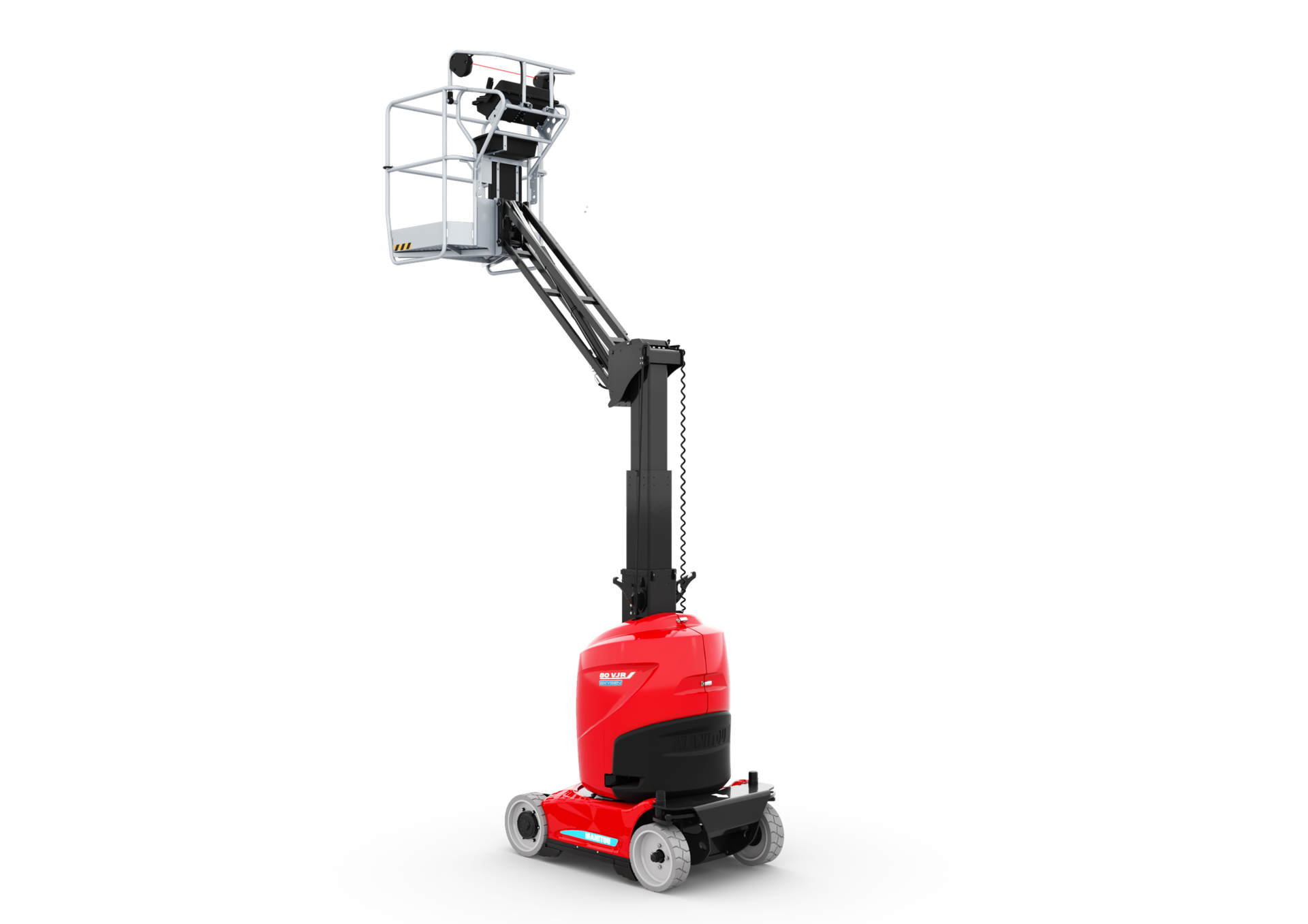

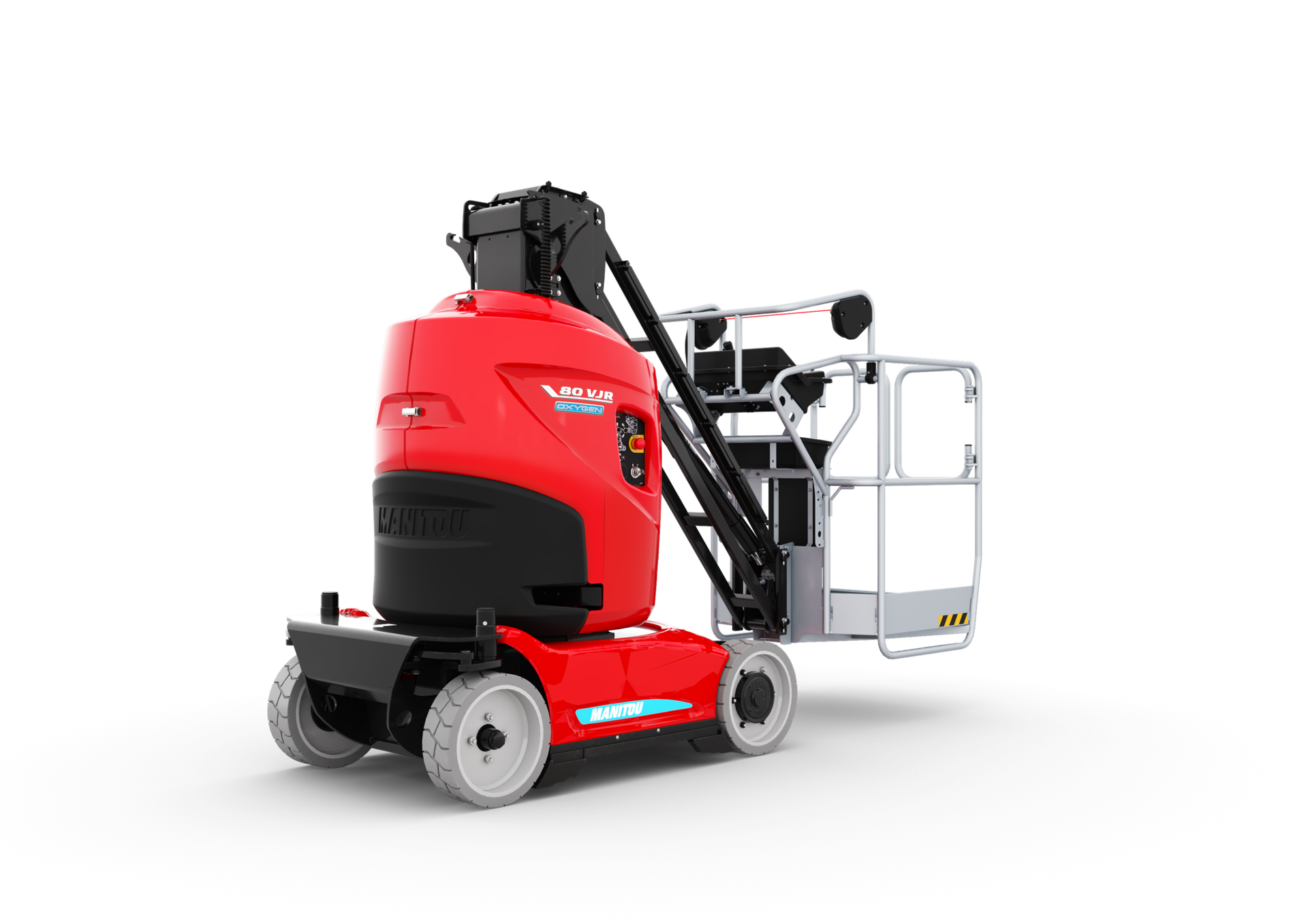

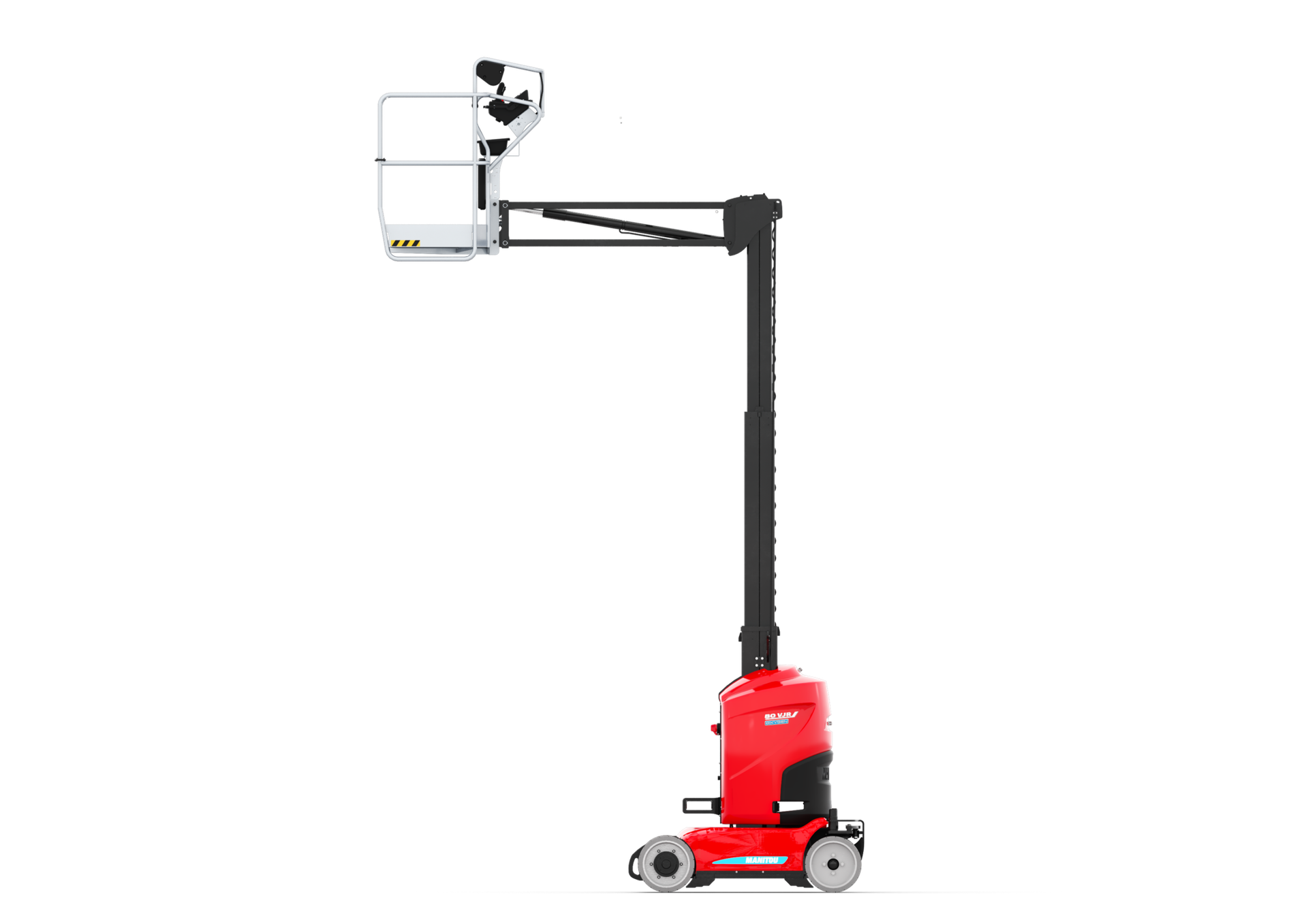

Manitou 80 VJR
The Manitou 80 VJR is an electric vertical boom lift (mobile elevating work platform) with 7.65 metres working height. With a width of 99 cm and lifting capacity of 200 kg, it is narrow and highly manoeuvrable, built for indoor work in tight spaces and warehouses.
- Working height
- 7,65 m
- Lifting capasity
- 200 kg
- Lifting height
- 3,2 m
- Energy type
- EL
Description
In warehouses, production facilities and shopping centres, space is tight and the floor is vulnerable. The Manitou 80 VJR is an electric mobile elevating work platform from Manitou of the vertical mast lift type, built precisely for these environments.
Manitou 80 VJR specs and working height:
Working height is 7.65 metres and outreach is 3.20 metres. Lifting capacity is 200 kg. The machine is 99 cm wide and the turret rotates 350 degrees. For full dimensions and technical specifications, see the product page for the 80 VJR.
The Manitou 80 VJR is the smallest in Manitou's range of mobile elevating work platforms with a vertical mast. V stands for vertical mast, J for jib and R for rotation. The number 80 refers to the working height of approximately 8 metres. The jib at the top allows the operator to reach out to the side and over edges, not just straight up.
The non-marking tyres protect floor coverings, and the perforated basket floor provides good downward visibility. The turret rotates 350 degrees, and the battery lasts a full working day without charging.
Typical applications are maintenance of technical installations, lighting and ventilation systems, work in shelving systems and high-bay warehouses, and indoor facade and ceiling finishing work in large buildings.
If you need greater working height, the Manitou 100 VJR is available with 9.85 metres of working height. If you need a scissor lift with similar working height, the Manitou SE 0808 is an alternative, but without the jib's ability to reach to the side.
Operating a mobile elevating work platform of this type requires a valid certificate, which can be obtained through a machine operator course with us.
