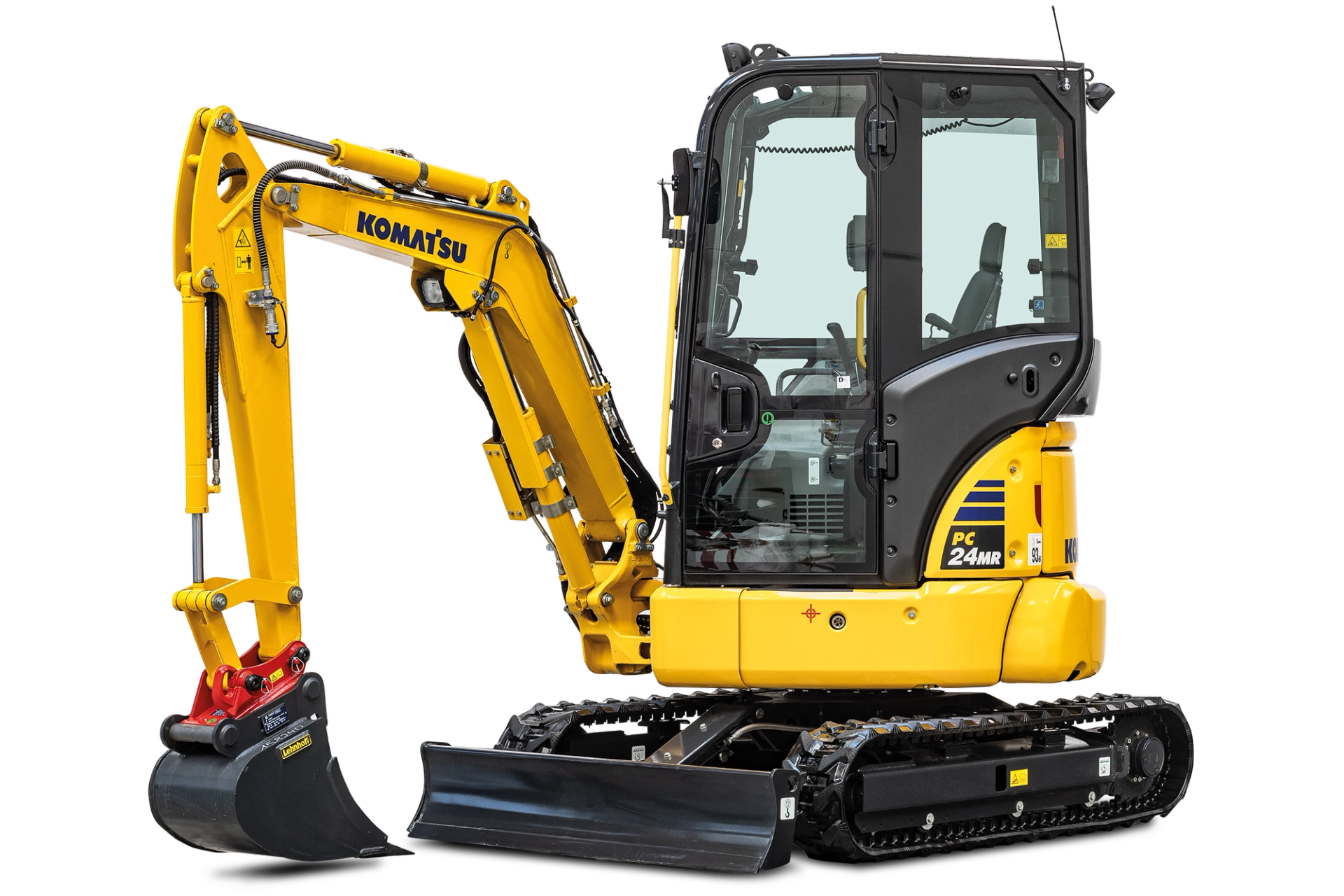

Komatsu PC24MR-5
The Komatsu PC24MR-5 is a compact 2.4-tonne short-tail mini excavator with a 15.8 kW (21.2 hp) engine and an operating weight from 2,340 kg. Ideal for trenching and construction work in confined spaces.
- Engine power
- 15,8/ 21,2 kW/HK
- Operating Weight
- 2,34-2,56 t
- Energy type
- Diesel
Description
The Komatsu PC24MR is a compact 2.4-tonne short-tail mini excavator designed for confined areas such as yards, road works, demolition sites and sewer trenches. It is sturdy and very stable, giving the operator confidence in a wide range of working conditions. Compared with the PC20R, it has higher engine power and a larger bucket capacity, making it better suited to somewhat more demanding jobs.
In the model name, PC stands for Komatsu’s crawler excavators, and the number 24 refers to the size class of around 2.4 tonnes.
Komatsu PC24MR specifications and weight:
The PC24MR-5 has an engine power of 15.8 kW (21.2 hp), an operating weight from 2,340 to 2,560 kg and a bucket capacity of 0.035–0.085 m³. For full dimensions and technical data, see the data sheet or the supplier’s PC24MR-5 product page, and explore more options among Komatsu’s mini excavators.
The hydraulic system is a CLSS (Closed-centre Load Sensing System) with a variable displacement pump. It delivers power, speed and precise control for all movements, even when several are used at once, regardless of load or rpm.
The cab is more spacious than before, with more leg room, ergonomic PPC controls, efficient ventilation and a wider door for easier access. For added safety, the machine has a dual lock lever neutral detection system for travel and work equipment levers, a seat belt caution indicator and a secondary engine shutdown switch. The boom and arm cylinders have dedicated hose burst valves.
The engine bonnets open wide for quick access to daily inspection points. For major maintenance, the front side cover can be removed, with access from ground level.
For more power and capacity, the PC26MR represents a natural step up in the same range. For zero-emission, lower-noise work, see the electric Komatsu PC20E–PC33E.
Operating a mini excavator requires proper training. Hesselberg offers a heavy equipment operator course for certification and skills development.
As a supplier of Komatsu in Norway, Hesselberg offers the full model range, along with a wide selection of excavators for different types of construction work.
