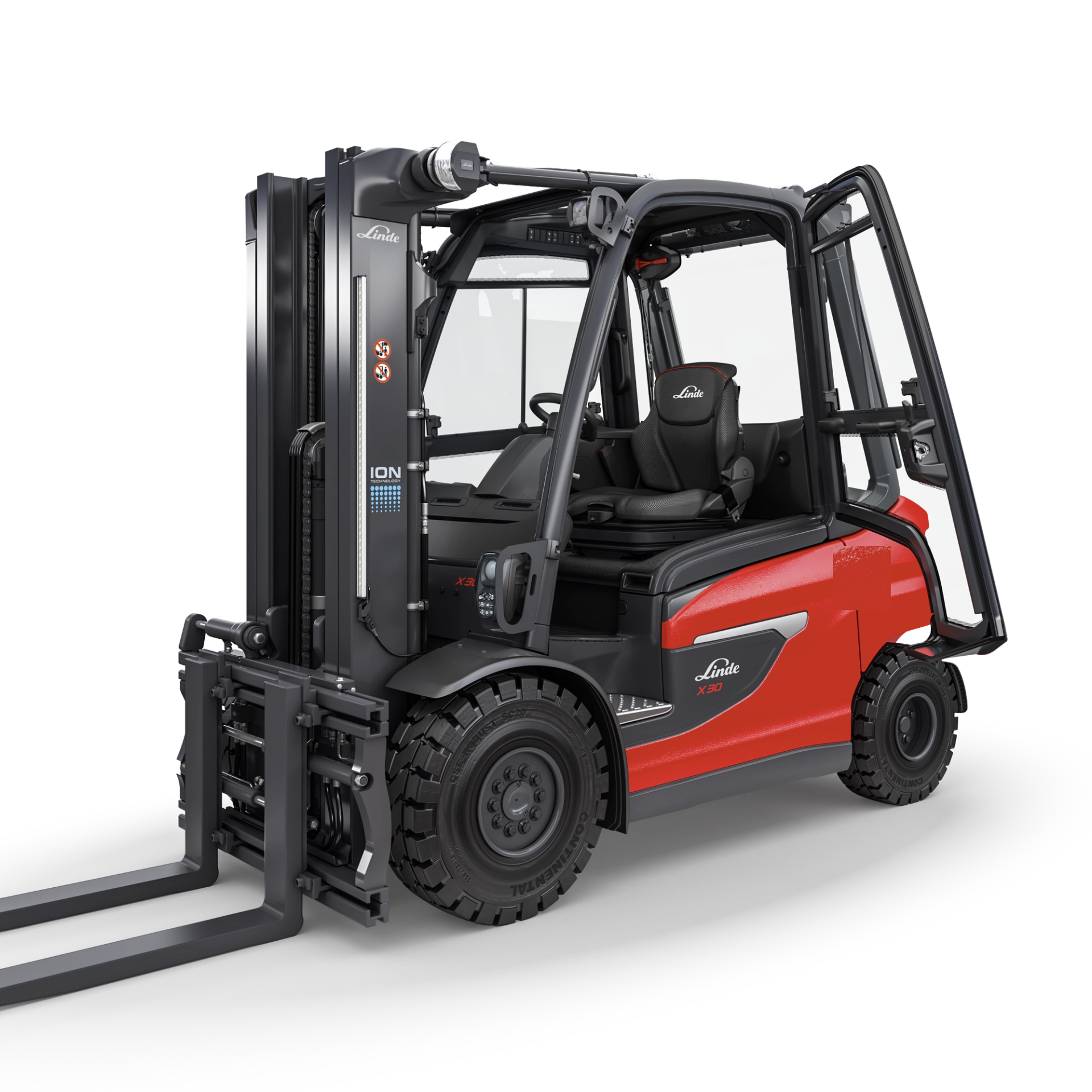

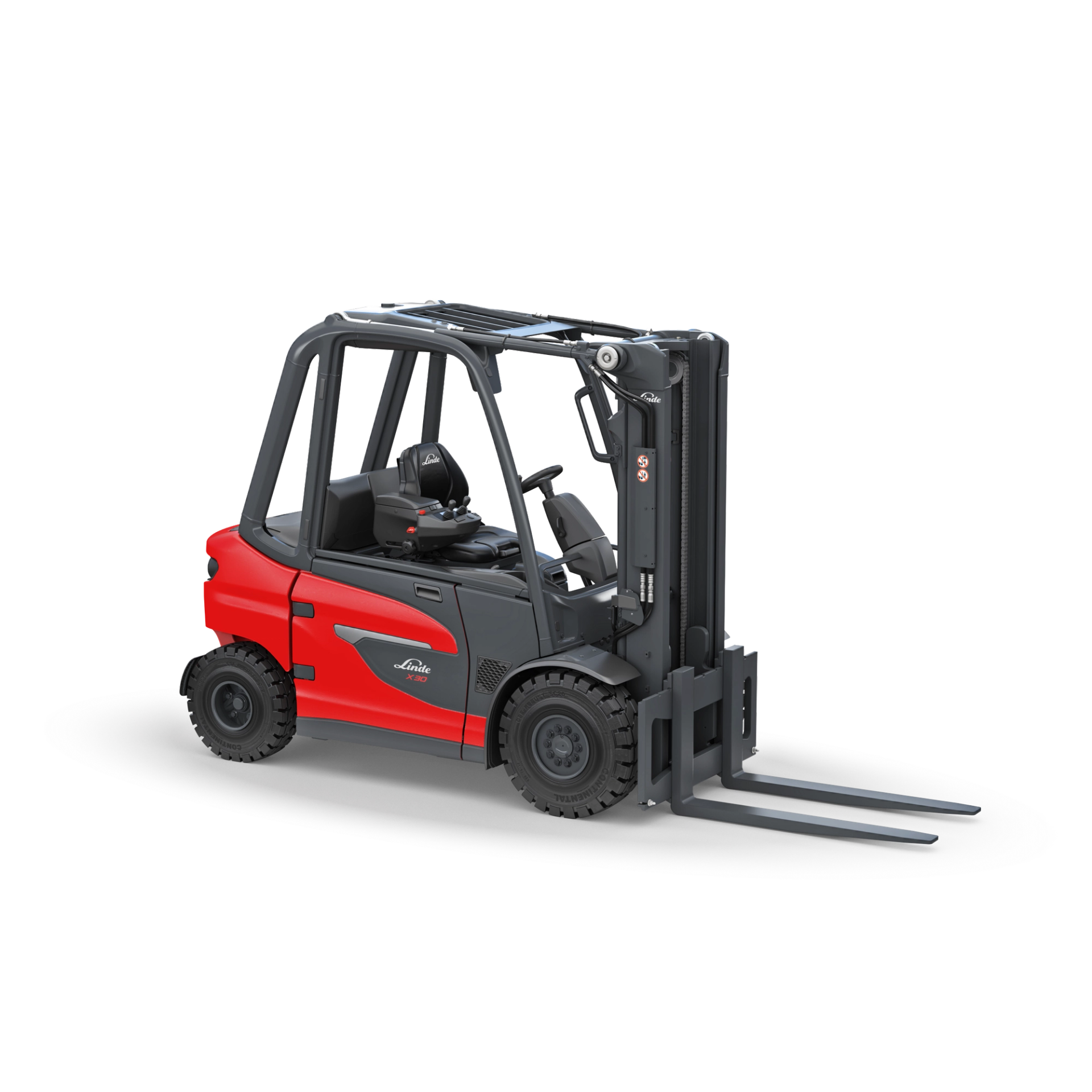

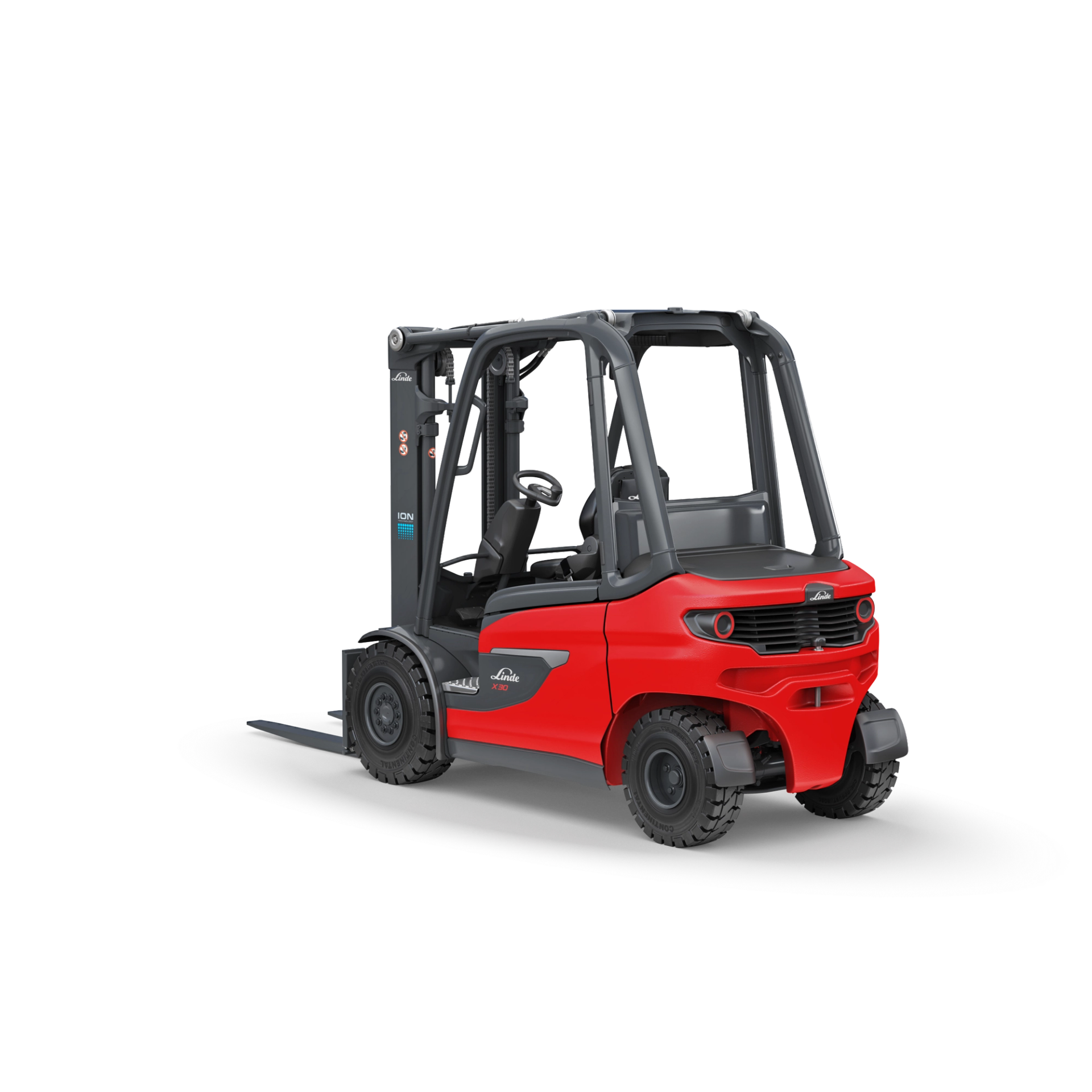

Linde X20-X35
The Linde X20–X35 is an electric counterbalance forklift from 2.0 to 3.5 tonnes, designed to match the performance of an internal combustion engine. With lifting capacity of up to 3,500 kg and lifting height of up to 7,780 mm, it is suited for demanding operation both indoors and outdoors.
- Lifting height
- 7780 mm
- Lifting capasity
- 3500 kg
- Energy type
- EL
Description
The Linde X20–X35 (1252 series) is an electric forklift from Linde, covering lifting capacities from 2.0 tonnes (X20) to 3.5 tonnes (X35).
Linde X20–X35 specs and lifting capacity:
The series covers lifting capacities from 2,000 kg (X20) to 3,500 kg (X35) with a maximum lifting height of 7,780 mm. For full dimensions and technical specifications, see the product page for the X20–X35.
The X in the model name is not coincidental. Where the Linde E20–E35 (1252 series) is an electric indoor truck optimised for warehouses and production facilities, the X20–X35 is engineered to serve as a full replacement for a diesel or LPG truck. A long wheelbase, large tyres and a water-cooled SRM+ motor allow it to handle uneven surfaces, dust, ramps and heavy continuous operation without compromising on performance. Both series cover the same weight class and share the same platform, but the choice between them depends on whether the truck will primarily be used indoors or in more demanding environments.
The Linde X35–X50 (1254 series) is the heavier sibling series with lifting capacities from 3.5 to 5.0 tonnes, and is the right choice when loads exceed what the X20–X35 is dimensioned for.
Drive is provided by a synchronous reluctance motor with permanent magnets and water-cooled power electronics, ensuring consistently high performance even in demanding multi-shift operation. The suspension is decoupled between the chassis, drive axle and mast, providing comfortable travel even on uneven surfaces.
Operating a forklift requires a forklift operator licence class T4, which can be obtained through a forklift operator course with us.
