Linde X35-X50
The Linde X35–X50 is an electric counterbalance forklift from 3.5 to 5.0 tonnes with long wheelbase and high ground clearance. With lifting capacity of up to 5,000 kg and lifting height of up to 7,665 mm, it is built for demanding operation both indoors and outdoors.
- Lifting height
- 7665 mm
- Lifting capasity
- 5000 kg
- Energy type
- EL
Description
The Linde X35–X50 (1254 series) is an electric forklift from Linde, covering lifting capacities from 3.5 tonnes (X35) to 5.0 tonnes (X50).
Linde X35–X50 specs and lifting capacity:

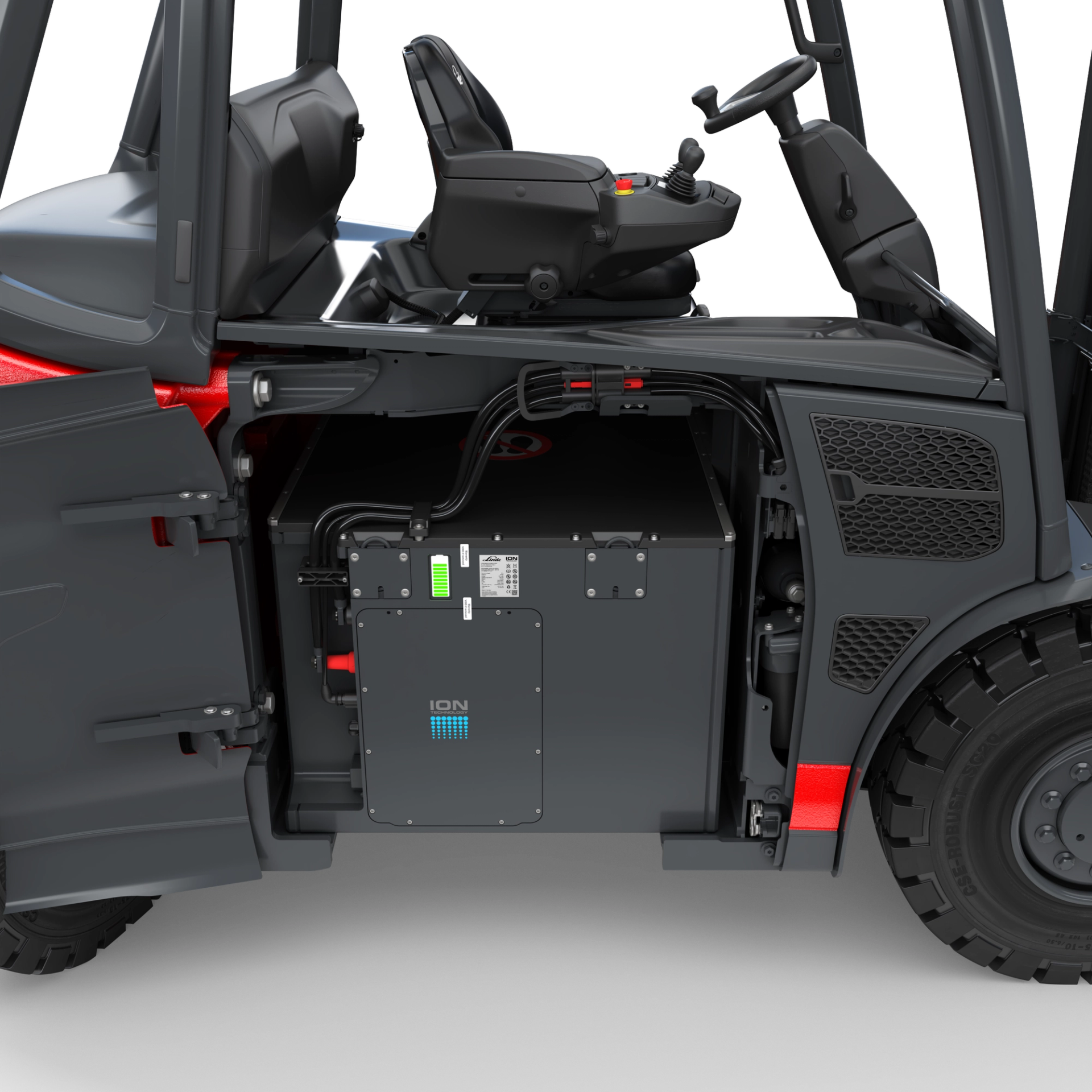

The series covers lifting capacities from 3,500 kg (X35) to 5,000 kg (X50) with a maximum lifting height of 7,665 mm. Traction force is 8,500 N continuous and up to 22,000 N at peak, with a travel speed of 22 km/h laden and unladen. The battery is lithium-ion with a capacity of 126.8 kWh. For full dimensions and technical specifications, see the product page for the X35–X50.
Compared to other Linde forklifts, the Linde X35–X50 is the choice when loads are heavy and operating conditions are demanding. The Linde X20–X35 (1252 series) is the lighter sibling in the same X family, covering 2.0 to 3.5 tonnes. Where the X20–X35 stops, the X35–X50 takes over. The Linde E35–E50 (1254 series) covers the same weight class electrically, but is optimised for indoor use on level surfaces. The X35–X50 is the choice where the truck will also be used outdoors, on ramps, uneven ground or in tough operating environments.
What sets the X35–X50 apart from a conventional indoor electric truck is its construction: a long wheelbase of 2,120 mm, large tyres with a ground clearance of 205 mm and a water-cooled SRM+ motor that delivers consistently high performance regardless of load and temperature.
Operating a forklift requires a forklift operator licence class T4, which can be obtained through a forklift operator course with us.
